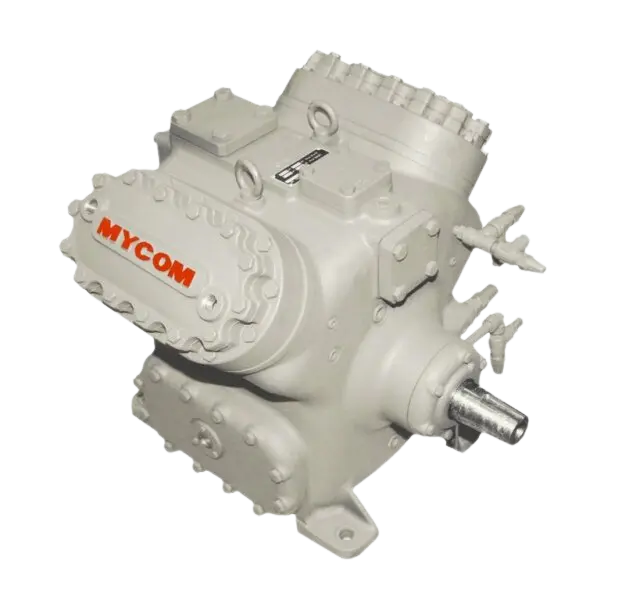

Compressor - K Type

https://sesora.id/web/image/product.template/320/image_1920?unique=ed9cdd7

Resiprocating/Piston Compressor

Item 2K 4K 6K 8K
Refrigerant Ammonia / Propane, Propylene / HFCs (R134a, R407C, R407F, R404A, R507A)
Compressor type Reciprocating, Open Type
Number of cylinders 2 4 6 8
Bore (mm) 85
Stroke (mm) 65
Displacement (m³/h)* 42.9 85.9 129 172
Rotation speed (rpm)** 800–1800
Drive method Direct drive / V-belt
Capacity control (%)
Ammonia
100/50 100/50 100/66/33 100/75/50/25
Capacity control (%)
Propane, Propylene / HFCs
100/50 100/75/50/25 100/83/66/50/33 100/75/50/25

* Displacement at 970 rpm
** The range of rotation speed varies by operating conditions.
Please refer to the ranges of use stated in the operating instructions.
Note: Prefix the model with N (Ammonia), P (Propane), or F (Fluorocarbons)

Not Available For Sale

This combination does not exist.

compressor

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days when Stock Ready

K-Series (K-Type) adalah kompresor refrigerasi tipe piston (reciprocating) yang kompatibel dengan berbagai jenis refrigeran. Seri ini tersedia dalam beberapa model berdasarkan jumlah silinder, seperti 2K, 4K, 6K, 8K, 12K, dan 62K.

Di Indonesia, K-type kini semakin banyak digunakan pada kapal ikan ±30 ton, khususnya untuk sistem ABF (Air Blast Freezer), dengan hasil yang sangat memuaskan. Salah satu keunggulan utamanya adalah waktu pematangan/pembekuan ikan yang lebih singkat, sehingga kualitas ikan lebih terjaga dan efisiensi operasional kapal meningkat.

K-series dirancang kompak, ringan, dan berkecepatan tinggi, dapat digerakkan langsung oleh motor listrik 4-pole atau mesin diesel, sehingga sangat cocok untuk aplikasi kapal. Dalam kondisi refrigerasi standar, kompresor ini tidak memerlukan oil cooler (kecuali untuk amonia), serta memiliki piping eksternal yang minimal, memudahkan perawatan dan instalasi di ruang mesin kapal yang terbatas.
